Products

PNEUMATIC & HYDRAULIC FITTINGS

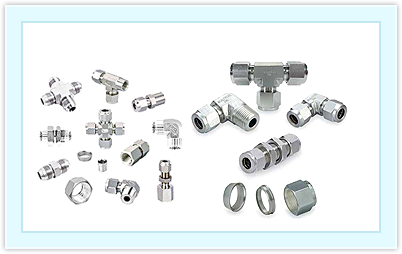

The tube fittings come in various type duch as compression type ,s.a.e. 45°, flare type,pipe thread type, (bsp,npt) suitable for application in different fields. The area of applications of tube fittings in brass are various such as oil line, water,fuel/petrol,gas,air

Brass fittings are made from forged,/bar stock type.

The tube fittings are also made from ss 304,316, ms steel with passivited quality.

Hydraulic Fittings

The fittings are one touch fittings such as Male/Female connector, male Elbow/TeeFemale Elbow/banjo One Touch equal /unequal connector Push Fittings

They are made from brass with chrome platted. SS 304,316.

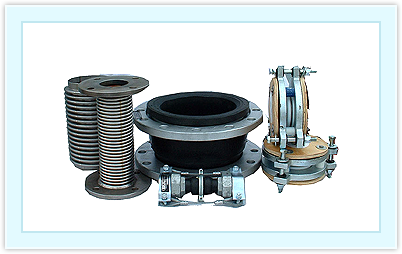

EXPANSIONS JOINTS (BELLOWS)

Metal bellows expansion joints have been designed to absorb a specified amount of movement by flexing of the thin-gauge convolutions.

GASKET SHEETS

Compressed Non Asbestos Gasket Sheet

General purpose gasketing material suitable for use with oils,solvents,gases,l.p. steam and most dilute acids and alkalies.

Compressed Asbestos Gasket Sheet

Suitable for general purpose application where conditions of temperature and pressure are not too severe

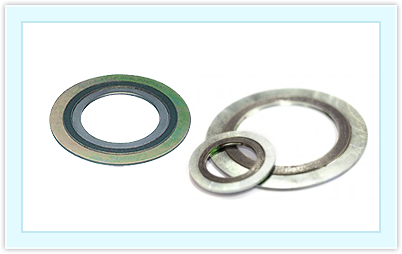

Spiral Wound Gaskets

Spiral gaskets are made as per asme b16.20 to suit asme b16.5 flanges

  • MOC:Filler material graphite, ptfe, caf winding material ss 304, 304l, 316, 316l
  • Thickness:3.2 mm & 4.5 mm

SPARE COMPONENTS FOR SUGAR INDUSTRIES

We have list of quality manufacturers who can supply mechnical and electrical spares for sugar industries.

  • Chain sprockets simplex ,duplex
  • Chain suitable for above sprockets
  • Pumps such as screw pumps for molasses.
  • Dosing systems such as antiscalent, phosphate, acid, biocide, boiler chemical, sulphur dosings
  • Mass flowmeter for sugar cane juice /molasses
  • Spares for sugar bag conveyor
  • Hydraulic bailing machine
  • Spares for bagasse carrier
  • Requisite electrical accessories

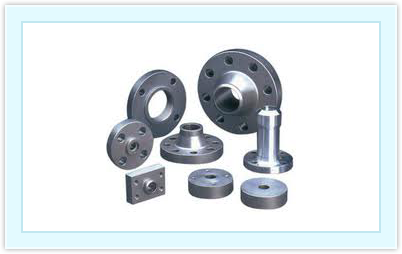

ASSORTED FLANGES

A Flange is Forged Steel, Alloy Steel & Stainless Steel, Design to connect section of Pipe of joint Pipe to Pressure Vessel, Value, Pump or any other integral Flange Assembly.

Flanges are joint to each other by bolting & joint to pipe system by welding or threading.

  • Size:Nominal Pipe : 1/2", 3/4", 1", 1 1/4", 11/2", 2", 21/2", 3" Upto 12 MM NB: 15, 20, 25, 32, 40, 50, 65, 80
    Upto 300 mm NB.
  • Type :Slip on, Weld-neck, Blind, Socket-weld, Threaded, Lap-Joint (Stub-end), Ring Joint Threaded Reducing & Orifice
  • Std:As per ASA b 16.5 Class for 150 Lbs., 300 Lbs., 900 Lbs., 1500Lbs & 2500Lbs., As Per DIN.ND - 6 - 2631(85 PSI), ND 10-2632 (142 PSI) ND - 16-2633(288 PSI), ND 402635 (569 PSI), As per Bs - 10.
  • Material:As per ASTM A 105( High Temperature Service) As per ASTM A 181 (General Service) Carbon Steel Grade.
    ASTM A 182 for high Temperature Service for S.S 304 & SS 316.
    SS plate: A240 & 403 Type 304 & 316.
    M.S Plate: IS - 226 - IS - 2206, IS - 2062 also profile cutting in M.S Plate & Febricate.
  • Dimension:As per ANSI B 16.5 for Forged steel Flange. As per BS.10 Table D,E,F,H for MS Flange.

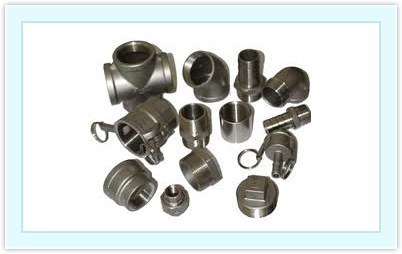

PIPE FITTINGS

Pipe fittings like elbow 90°, 45°. long bend 3° 90° with plain / threaded ends, tee-equal, unequal,reducer-concentric,eccentric, coupling,nipples.cap,plug.

Material & Specifications :-

  • Stainless Steel:304, 316
  • Carbon Steel :A234 - WPA, ASTM 105
  • Class:Sch 40 Sch 80

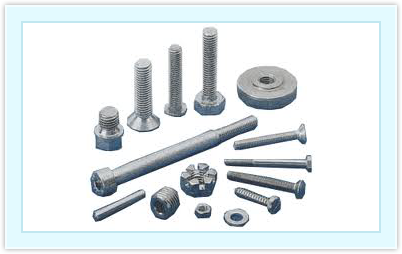

FASTNERS

Standard fasteners are available in the following range

  • MOC:Grade 8.8,10.9 ,12.9 & S.S. 304,316 & Brass
