Engineering Goods

Industrial Valves

We are pleased to offer our industrial valves. Our quality industrial valves serves various industries such as Process and Chemical, Refineries & Petrochemicals, Fertilizers, Thermal Power Stations and many more.

  • Gate Valves
  • Globe Valves
  • Non Return Valves
  • Wafer Type Check Valves
  • Forged Ball Valves
  • Taper Plug Valves
  • Knife Gate Valves
  • Strainers, Pulp Valves
  • Butterfly Valves
  • Investment Casting Ball Valves
  • Tube Glass, Ball Valves
  • Sluice Valves, Reflux Valves
  • Control Valves
  • Diaphragm Valves
  • Investment Casting Steam Trap
  • Pressure Reducing Valves
  • Safety Valves
  • Pinch Valves, Foot Valves

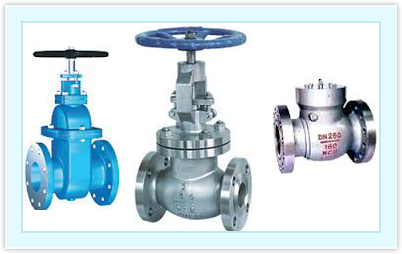

Gate Valves , Globe Valve, Non Return Valve

  • Size :15 NB to 300 NB
  • Class :150, 300, 600 PSI
  • MOC :Bronze, Gun Metal, Cast Iron, Cast steel ( A216 GR WCB)
  • Ends :Screwed / Flange
  • Stem :S.S. 410 / 304 / 316
  • Seat :13% CR, SS (aisi 410) renewable

Ball Valve

  • Type:1 PC, 2 PC, 3 PC
  • Size:8 MM to 50 MM
  • Ends:Screwed / Weld on/ Flange
  • MOC:Body cf 8 / cf 8m S.S. 304 / 316 / 304l / 316l
  • Seal:PTFE

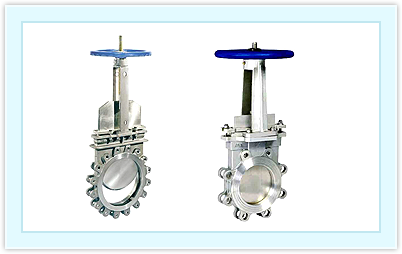

Knife Gate Valve

  • Application:Heavy fluids like sludges,slurries, powders in pulp and paper, chemical,textile,sewage palnt sugar mills, power plants
  • Operations:Hand Wheel, Pneumatic, Hydraulic, Electrical motor , Chain wheel, Bewel Gear, Level
  • MOC: Type:A216 GR WCB, / IS 210-FG 260/ CF8 / CF 8M
    Gate:304 / 316 / 304L / 316L
    Packing:PTFE

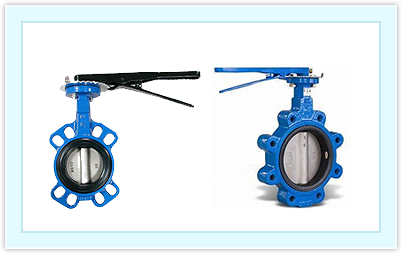

Butterfly Valve

These valves with unique design concept operative virtually to all fluids under all operating conditions.they are easy to operate because of light weight,compact design and ensure zero leackage.

  • Size :40 MM TO 600 MM
  • MOC : Body :C.I. S.G.IRON, S.S.
    • Disc :SG iron with epoxy coating, S.S. 304
    Lining :Black nitrile neoprene, EPDM
    Spindle :S.S.
  • Operation :With handle up to 200 mm, gear for size 200mm and above
  • Temp Range :-10° to 120°

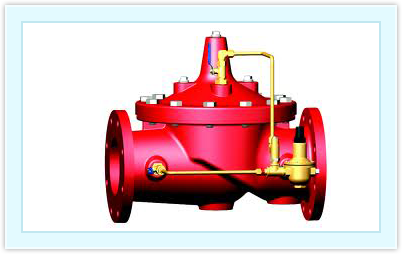

Pressure Reducing Valve

These valves are for controlling downstream pressure to adjust set point. the valve closes when downstream pressure rises.

  • Sizes:DN 15 TO 100
  • MOC:Body made of either CI ( A126 B), Cast Steel ( A216 GR WCB ) Stainless Steel, CF8M Actuator with EPDM a351, cf8m actuator with epdm rolling diaphragm. All wetted parts are free of non-ferrous metal
  • Springs:For three reduced pressure 5/60, 20/80, 40/125

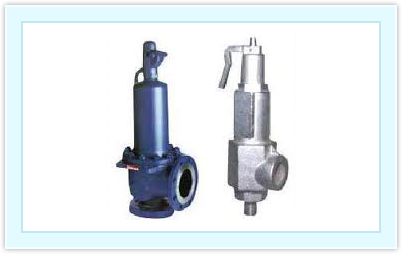

Safety Valve (Angle type)

  • Body:Bronze, CI, CS
  • Springs:Single or Double Post
